Tubular Key Drive Vice Action® Compression Latch
Part Number#:
S E3-15-25
In stock
$20.58
Overview
Tubular Key Drive Vice Action® Compression Latch
- Tubular Key Drive
- Zinc Alloy
- Black Powder Coated
- Adjustable
- Compression: 0.25”
- Grip Range Cam Forward 1” to 1.62”
- Grip Range Cam Reversed 07”to 2.69”

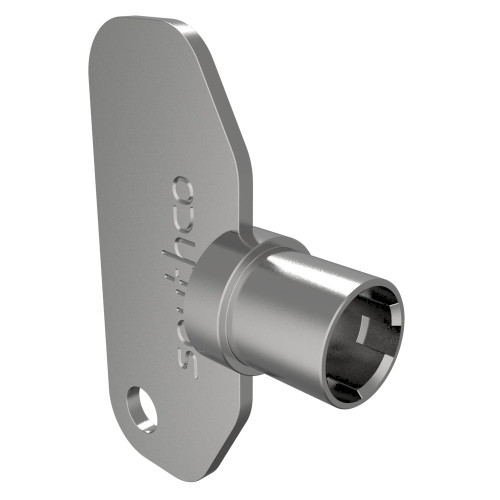

- Order Tubular Key S E3-5-15 Separately
Southco’s VISE ACTION® Compression Latches provide mechanical advantage, ensuring tight, vibration resistant door closure to seal out water and dust, while allowing easy access with a choice of key and tool security options. The smooth operation of the VISE ACTION® design aligns the cam behind the frame and draws it up tight with a single continuous half-turn motion.
| Weight (lbs) | 0.300000 |
|---|---|
| Pack Size | Each |
| UOM | EA |
| Brand | Southco |
| Material | Zinc Alloy |
| Finish | Powder Coat |
| Grease Fitting | No |
| Operation | Tool Operated |
| Profile | Standard |
| Size Series | 19.1mm |
| Door Thickness Range | 1.000-18.000 mm |
| Gasketed | Yes |
| Grip Range | 25.400-41.100 mm |
| Grip Type | Adjustable |
| Group | VISE ACTION® Latch-19.1mm |
| Access Restriction | Key Locking |
| Head Style | Southco® Tubular Key |
| Latch Assembled | No |
