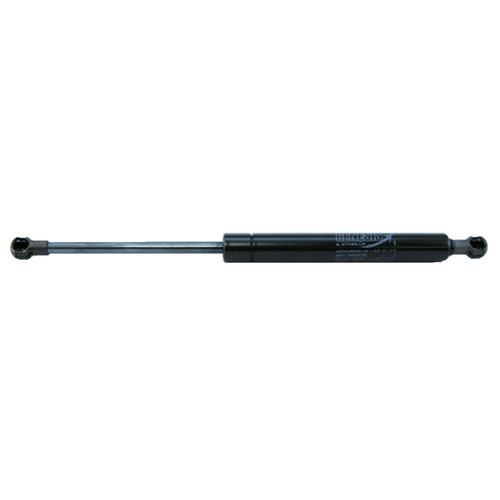

Genesis Gas Spring - 20" Extended 20 lbs. Force
Part Number#:
GSS 6394UU
In stock
$46.47
Overview
-Genesis Gas Spring
-.315" Rod x .748" Tube (8mm x 19mm)
-8" Stroke
-10mm Metal Ends
-20 lbs. Force
-20" Extended Length
The Genesis line of gas springs has been created to cover the industry's wide range of size and force requirements. These include the very compact low force springs in the 6 x 15 range to the largest force requirement in the 14 x 28 configurations. Austin guarantees the performance of Genesis Gas Springs for up to 5 Years when Austin has provided direct application assistance. View the rest of our Genesis Gas Spring line.
| 3D Cad Model | Click To Download |
|---|---|
| Weight (lbs) | 0.700000 |
| Pack Size | Each |
| UOM | EA |
| Size MM | 8x19 |
| Marketing P/N | GS08-0800MD10-020 |
| Size Inch | .315" x .748" |
| Connector Material | Metal |
| Connector Size | 10mm |
| Force lbf | 20 |
| Stroke | 8 |
| Extended Length | 20 |
| Brand | Genesis |
| Grease Fitting | No |
