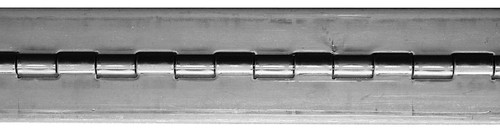

2 in. x 72 in. 1/4 Pin, Stainless Steel Continuous Hinge
Part Number#:
A805-P HINGE
In stock
$53.07
Overview
- 2 in. x 72 in. Stainless Steel Continuous Hinge
- .1910 in. diameter holes (47 places) on 3 in. centers, .375 in. from sides, 1.5 in. stagger on each leaf
- 1 in. knuckle length, .250 in. pin diamater
- Can be cut down to required project length
- Designed to span the length of adjacent surfaces
Continuous Hinges, also known as piano hinges, are designed to span the length of adjacent surfaces. Austin offers Continuous Hinges in two lengths, 72" and 96". Our Continuous Hinges come in several different types of materials, including aluminum, and cold-rolled plain, plated and stainless steel. Favored in numerous industries, Continuous Hinges are heavily used in applications such as industrial cabinets, tool boxes, medical carts and trail ramp extensions.
| Weight (lbs) | 4.850000 |
|---|---|
| Pack Size | Each |
| UOM | EA |
| Gauge | 14 |
| Material | Stainless Steel |
| Grease Fitting | No |
| Overall Length | 72 |
| Open Width | 2 |
| Pin Dia. | 1/4 |
| Knuckle Length | 1 |
