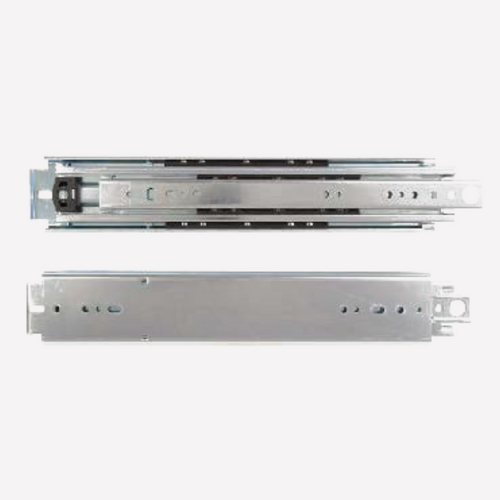

14" Drawer Slide Pair - ADS 7330B Series
Part Number#:
ADS 7330B-14
In stock
$31.64
Overview
- 14" Heavy Duty Drawer Slide Pair (350 mm)
- 250 lbs./pair capacity
For fire, rescue, and emergency vehicles, cargo vans, maintenance trucks and utility vehicles we offer high quality steel, aluminum, and stainless steel drawer slides in various lengths, load requirements and desired reach. From light duty 50 lbs. slides to extra heavy duty 500 lbs. with lock in /out features, we offer an extensive selection. Combine your drawer slide with Austin’s patented Front Drawer Release system for one-handed solution for securing your drawer slide.
Heavy duty drawer slides (up to 250 lbs.), side mount, side clearance: 3/4 in. plus 1/64 in. minus 0 in. each side, height: 2 7/64 in., 14 in., 32mm hole pattern, zinc plated, front disconnect feature
| Catalog Link | Click Here |
|---|---|
| Weight (lbs) | 4.500000 |
| Pack Size | Pair |
| UOM | PR |
| Slide Length (IN) | 14 |
| Slide Length (mm) | 350 |
| Travel Length (IN) | 14.84 |
| Travel Length (mm) | 377 |
| Load Capacity (lbs./pair) | 250 |
| Slide Type | Heavy Duty |
| Grease Fitting | No |
